Beautiful | Lifestyle | Innovations



Thin, Backlit, Beautiful

Finally, a screen that is truly custom. With nearly any option imaginable, Zero Edge Pro can be customized for a perfect fit in your space.

Zero Edge Pro - The Power To Choose

The Zero Edge Pro offers Optional LED Backlighting, Advanced Materials and a Magnetic Logo for additional ascetics.

Frame

  • Aluminum extrusion with .625’’ (16mm) “Zero Edge” style bezel
  • Built in LED channel for optional backlighting

Aspect Ratios

  • 16:9  | 16:10  |  2.35:1  |  2.40:1

Sizes

  • Max: 220” (5588mm) in 16:9
  • Max: 275” (6985 mm) in 2.35:1 / 2.40:1

*Available in 1” increments. All sizes are measured diagonally. Some materials may be limited in size. All dimensions are listed as seamless.



Aspect Ratio 16:9



Aspect Ratio 16:9 (with Backlighting)



Aspect Ratio 2.35:1







The Original Zero Edge Projection Screen

When we introduced Zero Edge to the world in 2011, it became the world’s first fixed frame screen intended to be incorporated into the design of a room.

Zero Edge Style

Make a statement with the original Zero Edge screen, first introduced in 2011, quickly thereafter becoming an instant hit.

Frame

  • Aluminum extrusion with 1/2″ (13mm) “Zero Edge” style bezel
  • Built in LED channel for optional backlighting

Aspect Ratios

  • 16:9  | 16:10  |  2.35:1

Sizes

  • Max: 205” (5207mm) in 16:9
  • Max: 185” (4699mm) in 16:10
  • Max: 205” (5207mm) in 2.35:1

*Standard sizes only



Aspect Ratio 16:9



Aspect Ratio 16:9 (with Backlighting)

Classic screen with our highest performing optic

7 Series Fixed with Black Diamond®, introduced in 2008, has been an industry success story and set the still unmatched standard that our competition strives for.

Classic Frame Style

All of our projection screens are completely hand-built and 7 Series Fixed is no exception. Our 3.5” fixed frames receive a fine velvet material ensuring a distraction-free viewing experience.

Frame

  • 3.5” aluminum extrusion hand wrapped in velvet
  • Available in curved configuration

Aspect Ratios

  • 16:9  | 16:10  |  2.35:1  |  2.40:1

Sizes

  • Max: 150” (3810 mm) in 16:9
  • Max: 140” (3556 mm) in 16:10
  • Max: 189” (4800.6 mm) in 2.35:1

*Available in 1” increments. All sizes are measured diagonally. Some materials may be limited in size. All dimensions are listed as seamless.



Aspect Ratio 16:9



Aspect Ratio 2.35:1



Aspect Ratio 16:9 Flush Mount Motorized

What is ALR?

In 2008, we set out to solve the problem of washed out projection screens in rooms with lights. We solved it in a big way with Black Diamond, still the highest performing ALR (ambient light rejecting) screen on the market.



Black Diamond 1.4

Gain  ALR   Acoustic
1.4 85% No



Black Diamond .8

Gain  ALR   Acoustic
0.8 90% No



Black Diamond XL

Gain  ALR   Acoustic
1.2 80% No



Slate 1.2

Gain  ALR   Acoustic
1.2 65% No



Slate AT 1.2

Gain  ALR   Acoustic
1.2 65% Yes



Short Throw

Gain  ALR   Acoustic
0.6 90% No



Unity

Gain  ALR   Acoustic
1.0 10% No



Unity AT

Gain  ALR   Acoustic
1.0 10% Yes



Black Diamond Film

Gain  ALR   Acoustic
0.8 90% No



FlexGlass

Gain  ALR   Acoustic
0.8 90% No



360

Gain  ALR   Acoustic
0.8 90% No



Pure Gray

Gain  ALR   Acoustic
0.85 15% No



Pure Gray AT

Gain  ALR   Acoustic
0.85 15% Yes



Pure White

Gain  ALR   Acoustic
1.3 10% No



Pure White AT

Gain  ALR   Acoustic
1.3 10% Yes

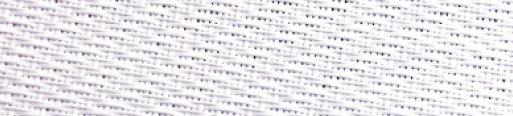

Maestro

Gain  ALR   Acoustic
1.1 10% Yes



Solar Gray

Gain  ALR   Acoustic
0.8 90% No



Solar White

Gain  ALR   Acoustic
0.8 90% No



Gamma

Gain  ALR   Acoustic
0.8 90% No
