BRKT Brand



What makes one TV mount better than the others?
Thickness of the metal, adjustability, brass bushings, ease of installation and seeing as little of the actual mount as possible. Our FULL-LVL series of mounts feature a hook & loop tab on the bottom of it’s locking pull string tab to hide those unsightly pull strings. The larger single ARM mounts are designed after a bicycle frame which not only gives in incredible strength but it also allows for easier articulation.




  •

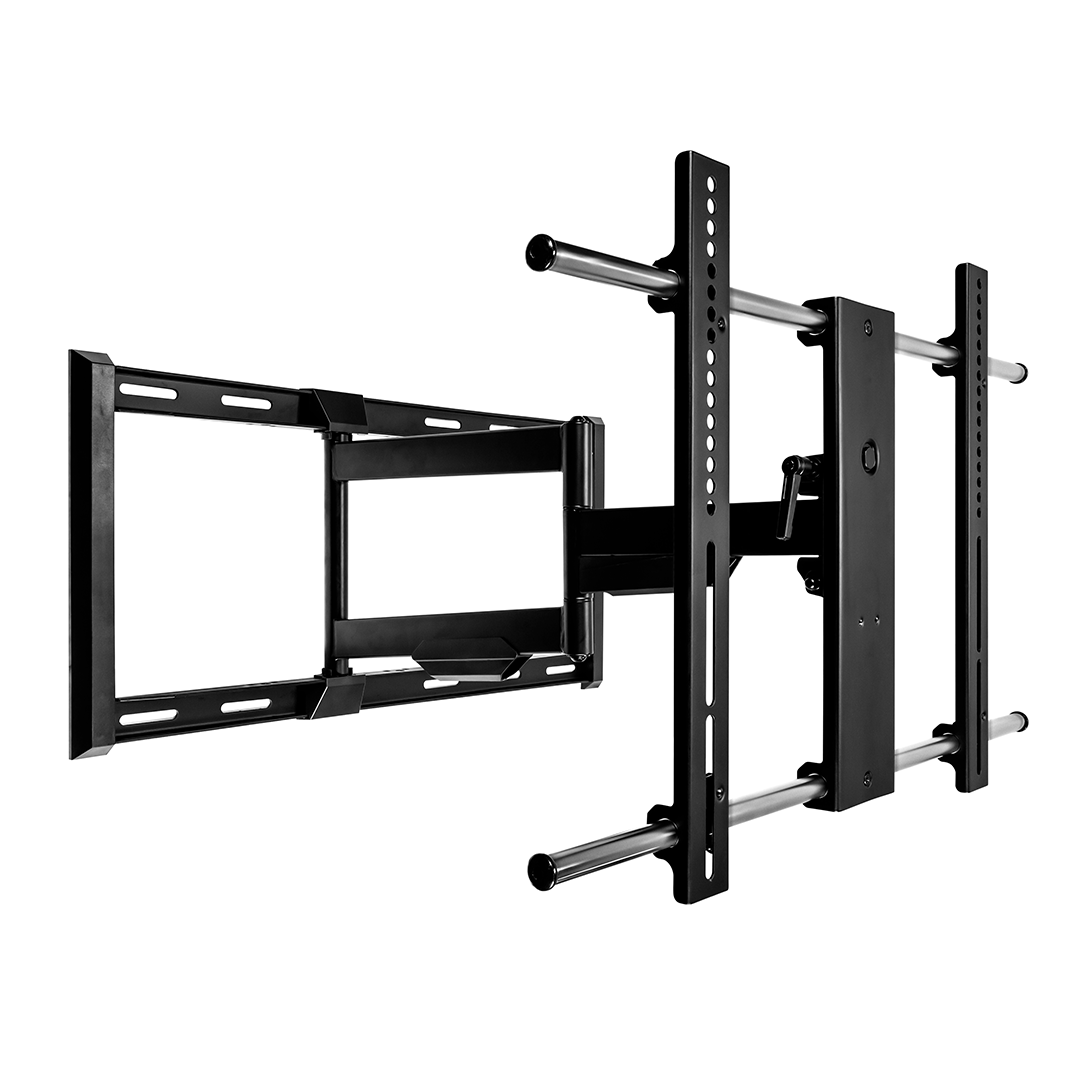

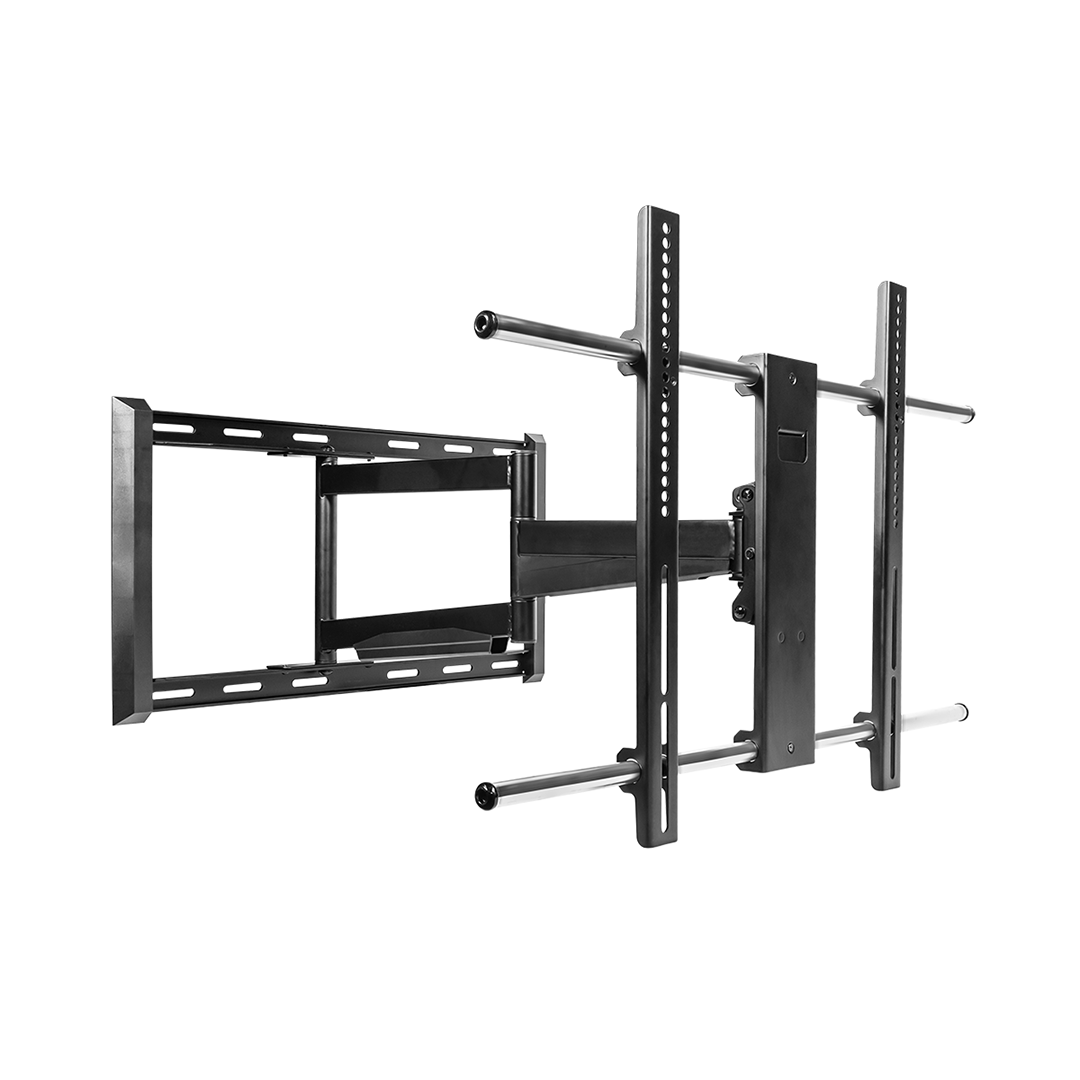

Heavy Duty X-Large
30" Extension

ARM3780HD

  • Fits most 37"-80" flat panels
  • Supports up to 150 lbs
  • Tilt: +15° to -5°
  • Mounting profile: 2.4"
  • Extension from wall: 30"
  • Max VESA compliance: 700 x 500
  • Brass bushing for smooth adjustments
  • Cable management shroud

View

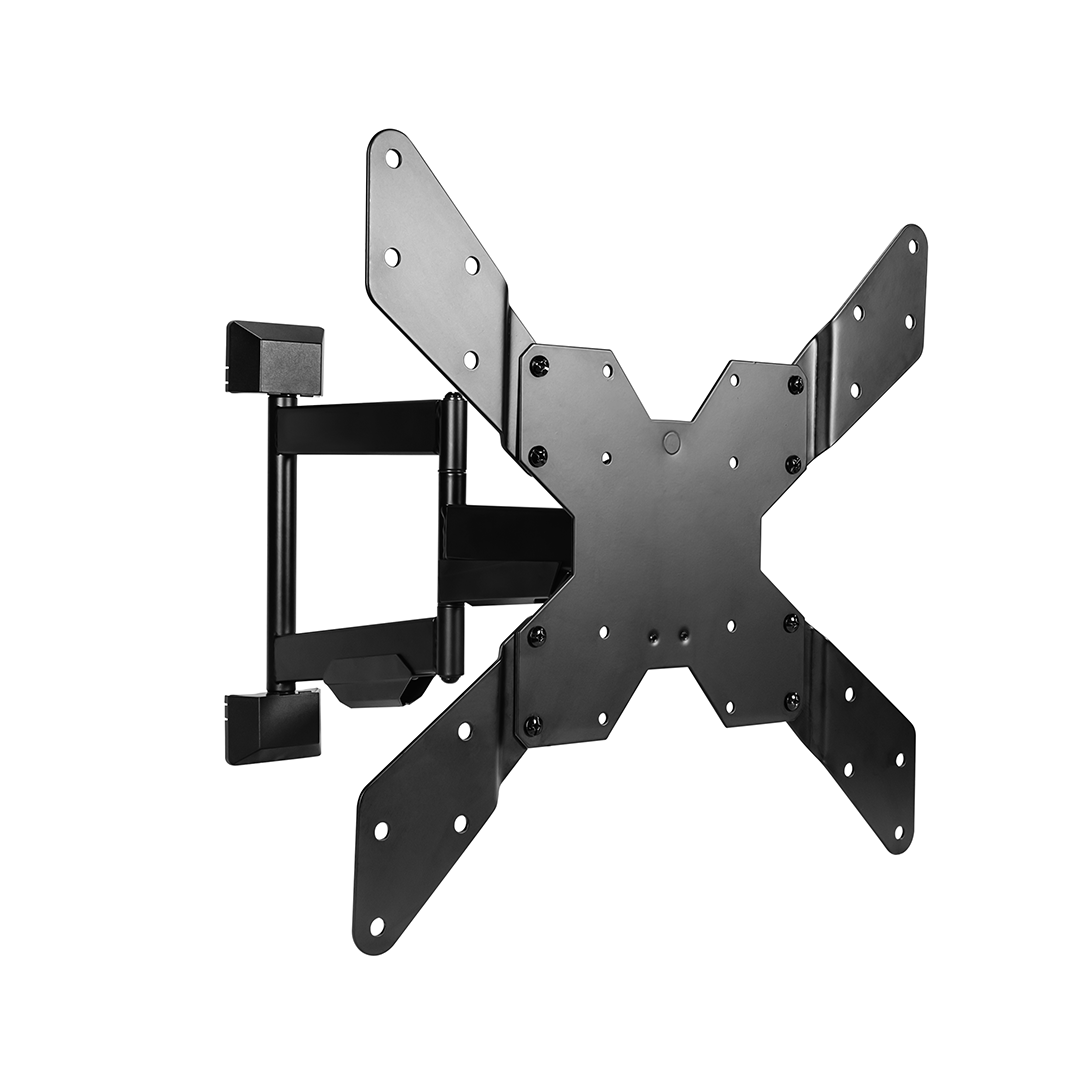

Heavy Duty Large
23.7" Extension

ARM3265HD

  • Fits most 32"-65" flat panels
  • Supports up to 120 lbs
  • Tilt: +15° to -3.5°
  • Mounting profile: 1.97'
  • Extension from wall: 23.70'
  • Max VESA compliance: 600 x 400
  • Brass bushing for smooth adjustments
  • Cable management shroud

View

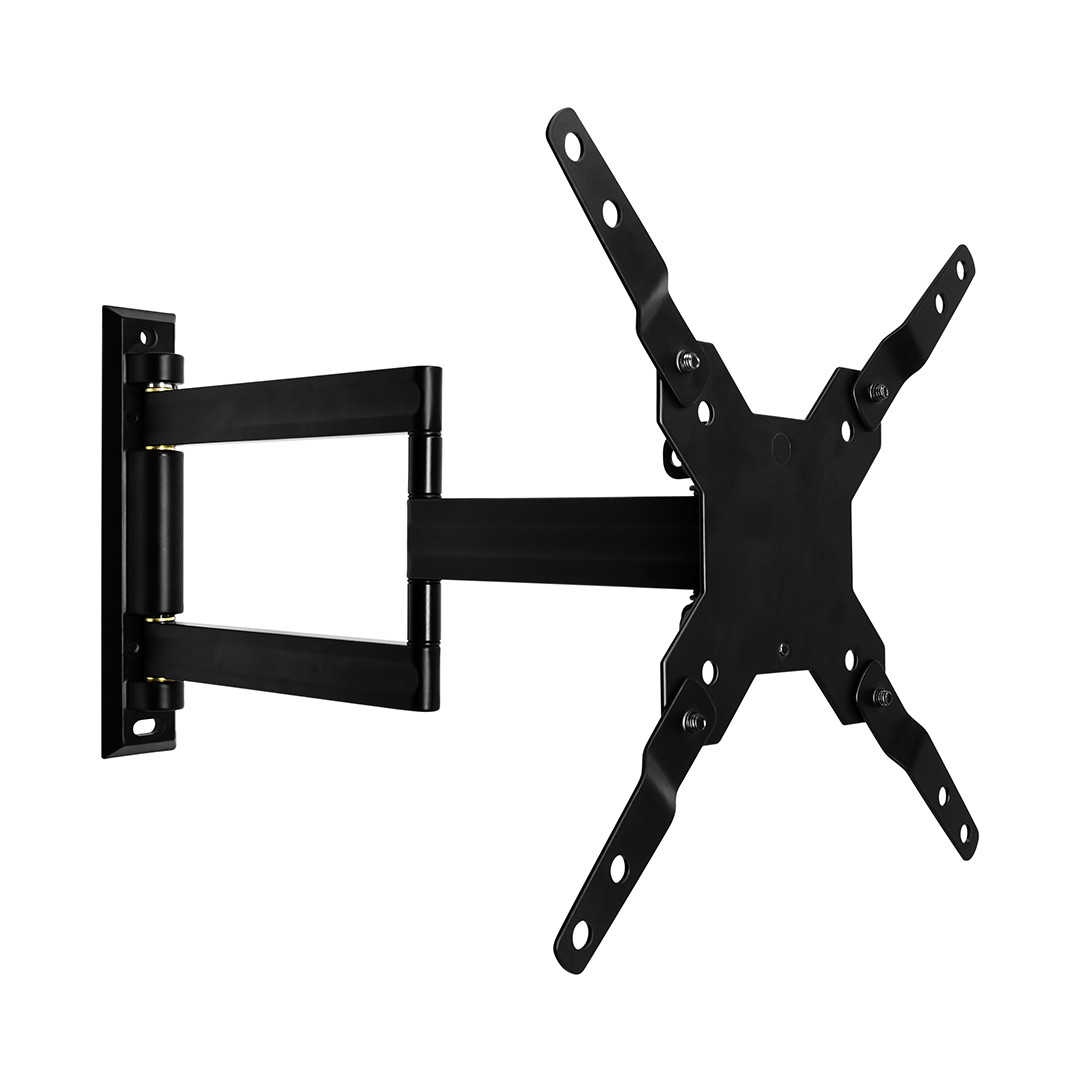

Heavy Duty Medium
20.69" Extension

ARM2346HD

  • Fits most 23" to 46" Panels
  • Supports up to 70 lbs
  • Roll/level: +/- 3°, pre or post-installation
  • Mounting profile: 1.85"
  • Extension from wall: 20.69"
  • Max VESA compliance: 400 x 400
  • Single stud or solid wall attachment


View

Small to Medium
14.24" Extension

ARM1337

  • Fits most 13"-37" flat panels
  • Supports up to 35 lbs
  • Tilt: +10° to -3°
  • Mounting profile: 2.04"
  • Extension from wall: 14.24"
  • Max VESA compliance: 200 x 200
  • Brass bushing for smooth adjustments
  • Single stud or solid wall attachment

View

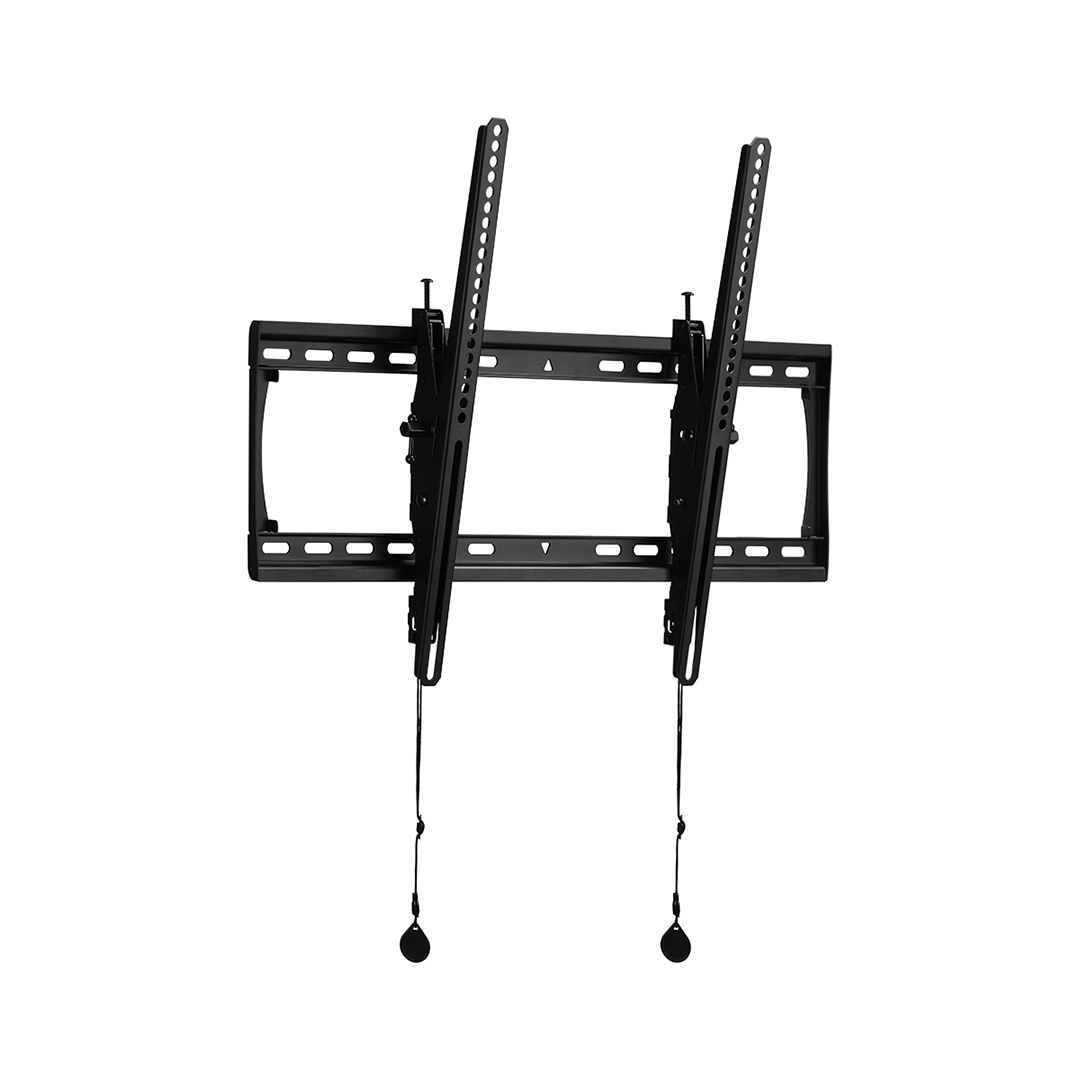

Low Profile Large
Post Level Adjustment

TLT3790FULL-LVL

  • Fits most 3"'-90" flat panels
  • Supports up to 175 lbs
  • Mounting profile: 1.98'
  • Tilt: -3° to +12°
  • Max VESA compliance: 700 x 400
  • Screw for micro level adjustments
  • Spring latch to hold the monitor bracket to the wall for safety
  • Hook for latch strap
  • Handle adjustment

View

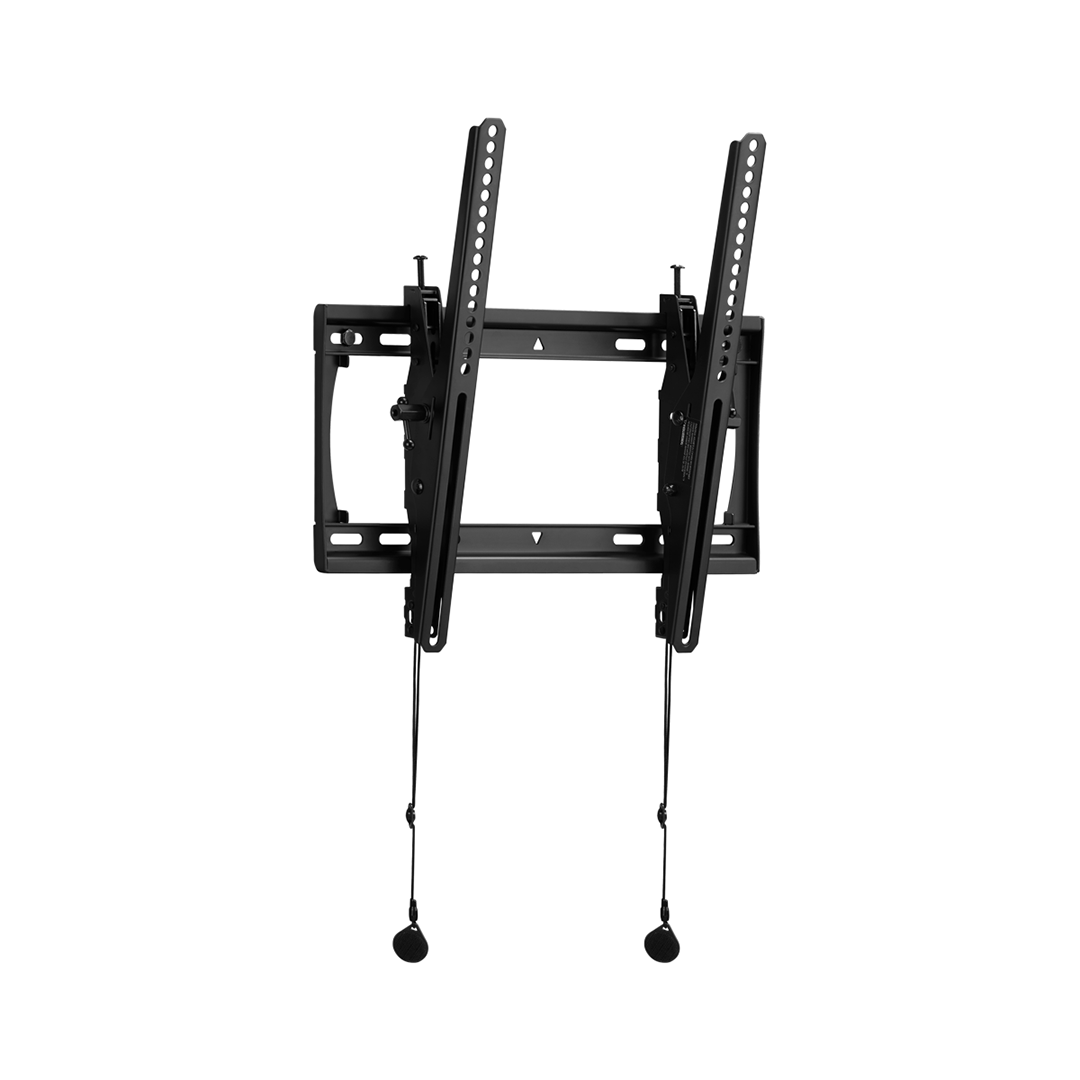

Low Profile Medium
Post Level Adjustment

TLT3260FULL-LVL

  • Fits most 32"-60" flat panels
  • Supports up to 120 lbs
  • Mounting profile: 1.98"
  • Tilt: -3° to +12°
  • Max VESA compliance: 400 x 400
  • Screw for micro level adjustments
  • Spring latch to hold the monitor bracket to the wall for safety
  • Hook for latch strap
  • Handle adjustment

View

Large Single Rail
Post Level Adjustment

TLT3790MAX-LVL

  • Fits most 37"-90" flat panels
  • Supports up to 175 lbs
  • Mounting profile: 1.89"
  • Tilt: -3° to +12°
  • Max vesa compliance: 700 x 400
  • Spring latch to hold the monitor bracket to the wall for safety
  • Hook for latch strap
  • Handle adjustment
  • 16" or 24" Stud Mounting

View

Medium Single Rail
Post Level Adjustment

TLT3260MAX-LVL

  • Fits most 32"-60" flat panels
  • Supports up to 120 lbs
  • Mounting profile: 1.89"
  • Tilt: -3° to +12°
  • Max vesa compliance: 400 x 400
  • Spring latch to hold the monitor bracket to the wall for safety
  • Hook for latch strap
  • Handle adjustment


View

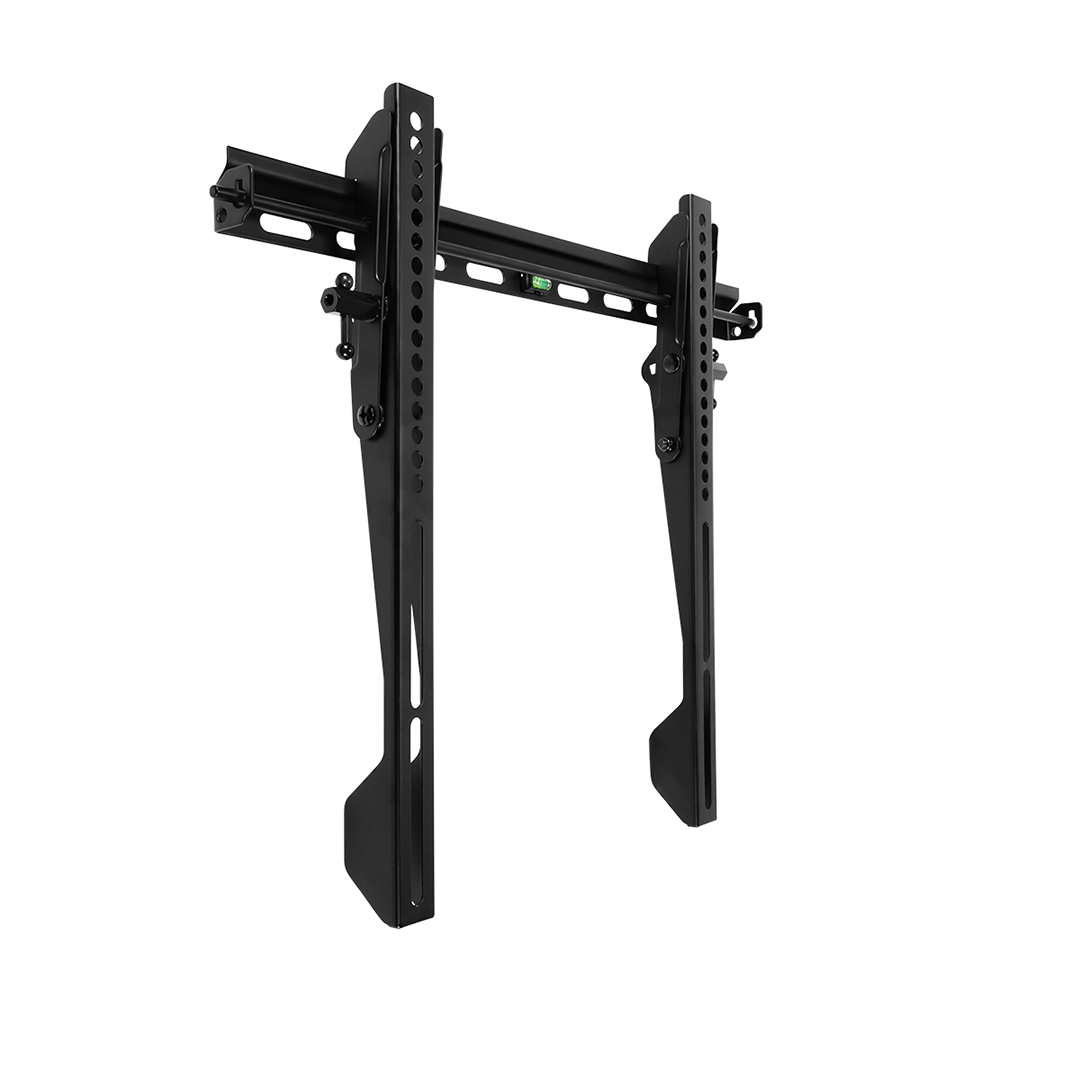

Large Single Rail

TLT3780S

  • Fits most 37"-80" flat panels
  • Supports up to 150 lbs
  • Mounting profile: 1.8"
  • Tilt: +7°
  • Max VESA compliance: 600x400
  • Soft pad to protect the wall
  • Lock bar to secure monitor to mount
  • Handle adjustment


View

Medium Single Rail

TLT3260S

  • Fits most 32"-60" flat panels.
  • Supports up to 100 lbs.
  • Mounting Profile: 1.8"
  • Tilt: +7°
  • Max VESA Compliance: 400x400
  • Soft pad to protect the wall.
  • Lock bar to secure monitor to mount.
  • Handle adjustment.


View

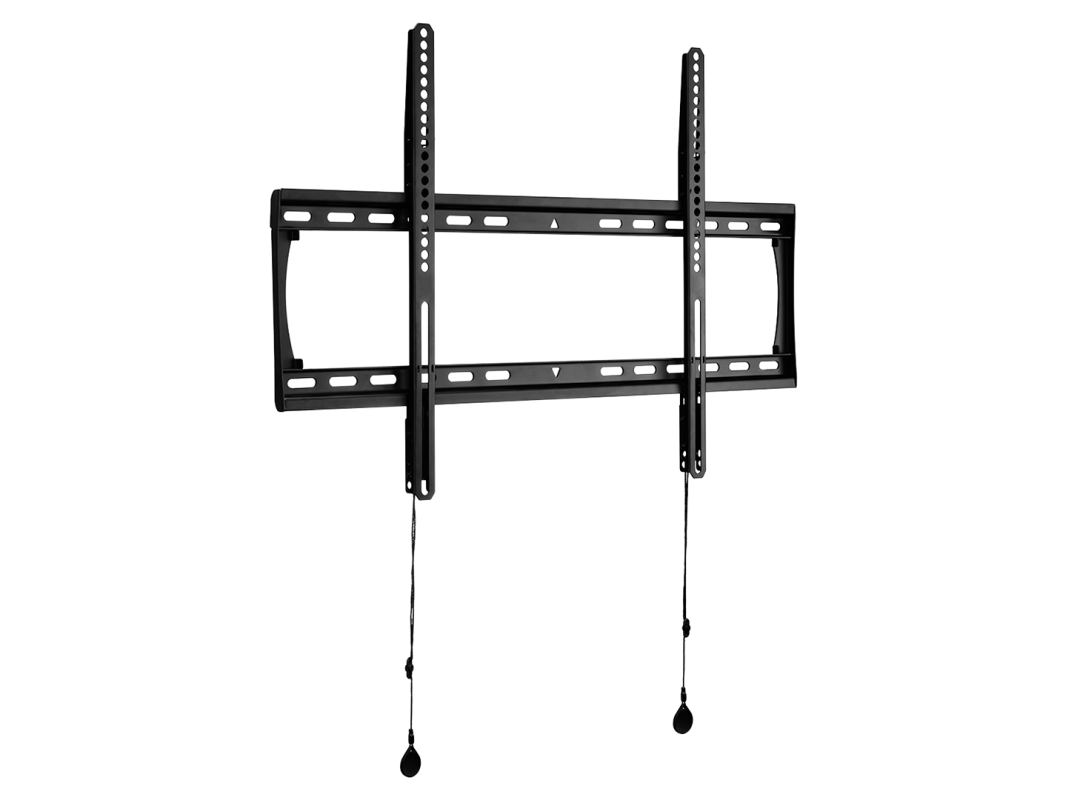

Low Profile Large
Post Level Adjustment

FLT3790FULL-LVL

  • Fits most 37"-90" flat panels
  • Supports up to 175 lbs
  • Mounting profile: 0.85"
  • Max VESA compliance: 700 x 400
  • Level adjustment screws for micro-adjustments after mounting.
  • Spring latch to hold the monitor bracket to the wall for safety
  • Quick release loop holder

View

Low Profile Medium
Post Level Adjustment

FLT3260FULL-LVL

  • Fits most 32"-60" flat panels
  • Supports up to 120 lbs
  • Mounting profile: 0.89"
  • Max VESA compliance: 400 x 400
  • Level adjustment screws for micro-adjustments after mounting.
  • Spring latch to hold the monitor bracket to the wall for safety
  • Quick release loop holder

View

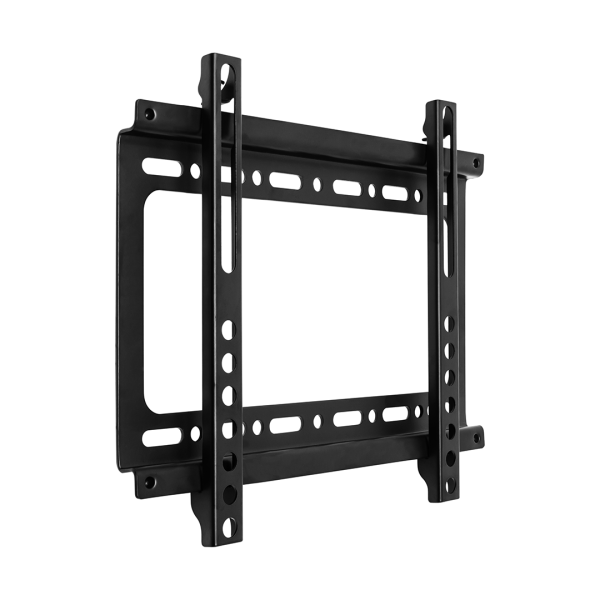

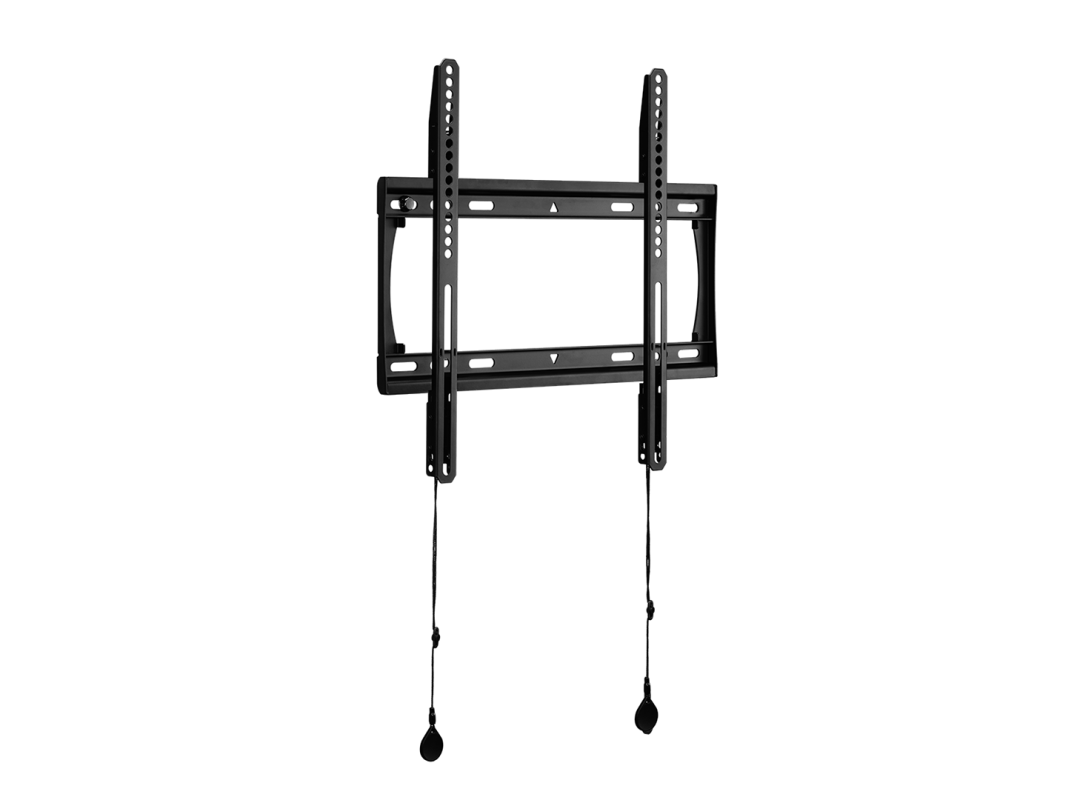

Low Profile Small
with Full Back

FLT1339FULL

  • Fits most 13"-37" flat panels.
  • Supports up to 50 lbs
  • Mounting profile: 0.87"
  • Max VESA compliance: 200 x 200
  • Allen security screws to secure mount





View





Large Ceiling Mount for 32 to 80" Flat Panels



CEIL3280

The BRKT Brand CEIL3280 Large Ceiling Mount is for panels up to 80 and up to 150lbs. The Large Ceiling Mount has been designed for quick, easy, and accurate installation. The CEIL3280 Mount accommodates standard 1 1/2 NPT Pipe (not included)

  • Fits most 32"-80" flat panels
  • Supports up to 150 pounds
  • Max tilt +18° down
  • Mounting profile: 3.32"
  • Max VESA compliance: 600x400
  • 1.5 NPT fittings

View







Universal Projector Mount with Micro Adjustments



PJMPRO

The BRKT Brand Universal Projector Mount with 3-Axis Micro Adjustment supports projectors up to 50 lbs

  • Supports up to 50 lbs.
  • Gear driven 3-axis micro adjustment.
  • ±20° pitch ideal for any throw.
  • ±5° roll and ±180° yaw for post installation adjustment.




View
